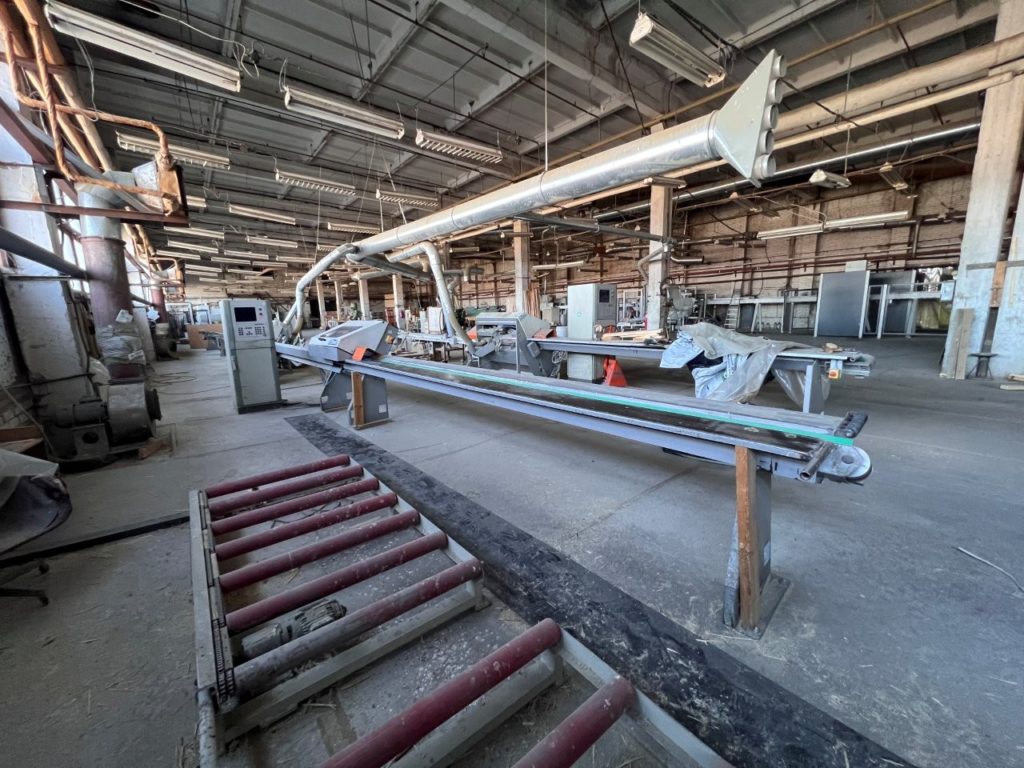

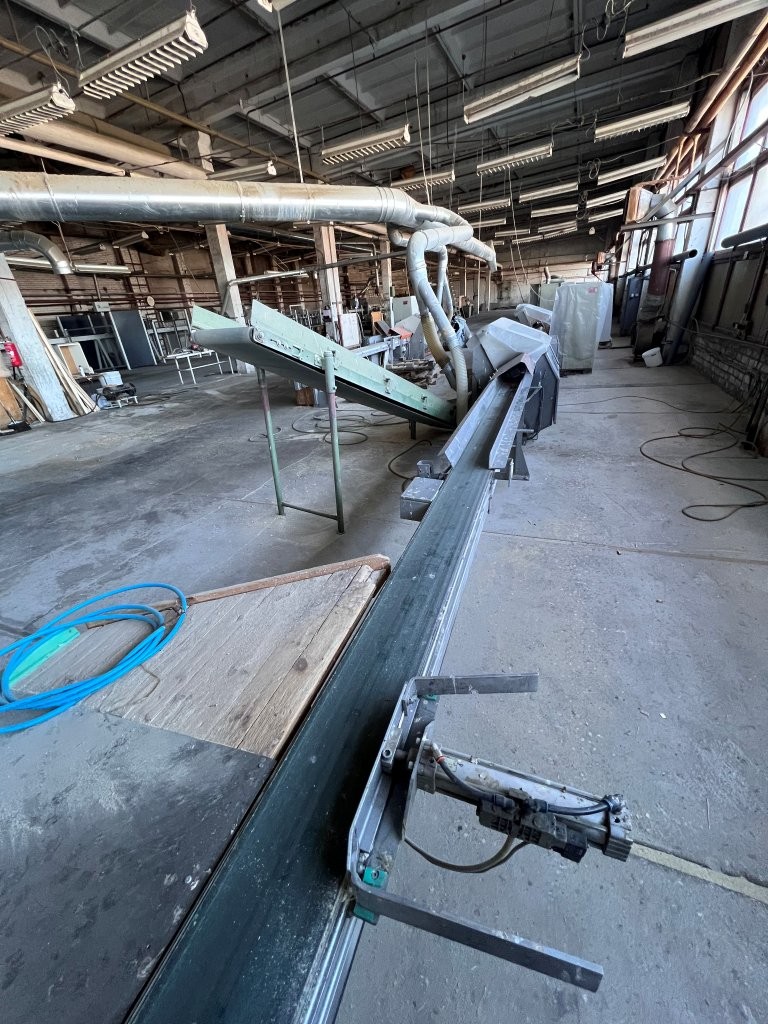

CNC full optimization cross-cut saw line PAUL MKL 11
Year of manufacture 1998
Manufactured by Paul Maschinenfabrik GmbH & Co.
Paul saw model 11 MKL optimizing and forgiving cross-cut saw:
for soft and hard wood
Wood input length 2400- 6000 mm
Wood width 30-180 mm
Wood thickness 6-75 mm
Minimum cross-section 30×15 mm or 45×6 mm
Maximum cross-section 130×75 mm or 180×45 mm
Shortest sections to be sawn 250 mm
Saw blade diameter 500 mm,
Saw motor 5.5 kW
Saw cycles 0.4 s
Saw stroke pneumatic
Feed speed max. 200 m/min
Infeed conveyor belt length x width L x W
11525×200 mm, belt width 100 mm
Measuring station
with luminescence and light barrier
for wood start and end detection
5 side shifters in the outfeed conveyor belt sorting line
Length of the outfeed table 11500mm
Power consumption 11.4 kW
Control – software
CNC MAXI 5 Premium
Machine is in fully working condition!
Weight approx. 6000 kg
